Today, Shandong single beam crane manufacturer will take you to learn about the main structure of electric single beam cranes.

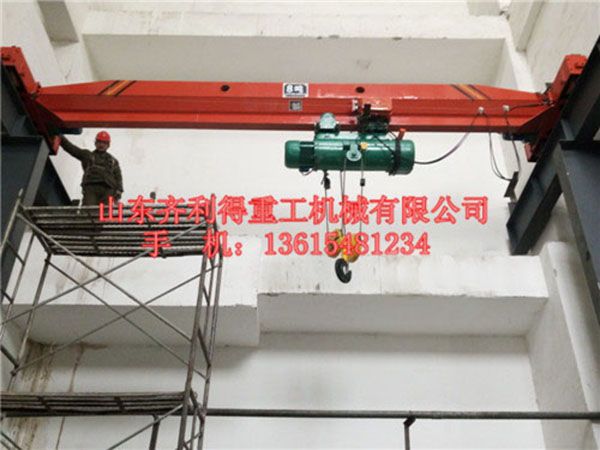

The electric single beam crane is mainly composed of four parts: bridge frame, electric hoist, large vehicle operating mechanism, and electrical equipment.

The bridge section is mainly composed of main beams, crossbeams, trolley conductive supports, control rooms, and other auxiliary components. The main beam is mainly made of steel plates spliced into a U-shape, then welded with I-beams to form a box shaped solid web beam, and prefabricated with corresponding arches according to standards; The crossbeam is welded into a box shape using steel plates, and holes are drilled on the box beam to install the wheel assembly; A connecting plate is used between the main beam and the crossbeam, and bolted together to form a whole.
